Boxer for Rhino3D

One diemension futher.

With Boxer you can…

  • develop complex structures from flat plates.
  • cover the complete process from design to automatic production planning to execution.
  • automated joining based on the model of classic wood joints.
  • lower the amount of waste.
  • use visual aids when assembling complex panel structures.



revolutionizes working…

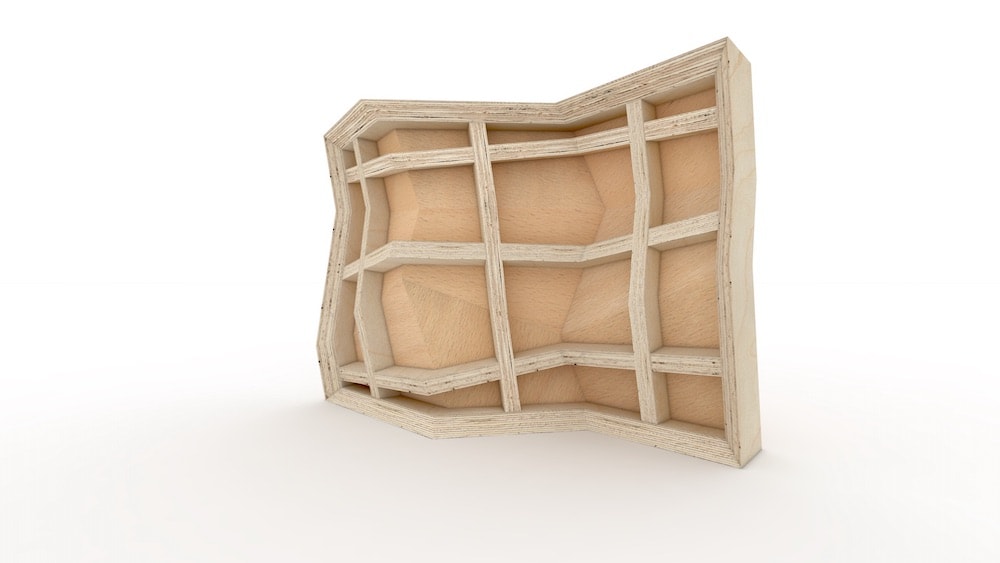

The design scope for different shapes is greatly increased by the use of BOXER.

A wide range of different connections allows for great designs. Changes to the design through the connections can be checked directly on the computer.

Model development becomes fast and uncomplicated.

  • Cutting paths can be created automatically.
  • The production can be simulated and the producibility can be checked.
  • The original materials can be tested in the model.

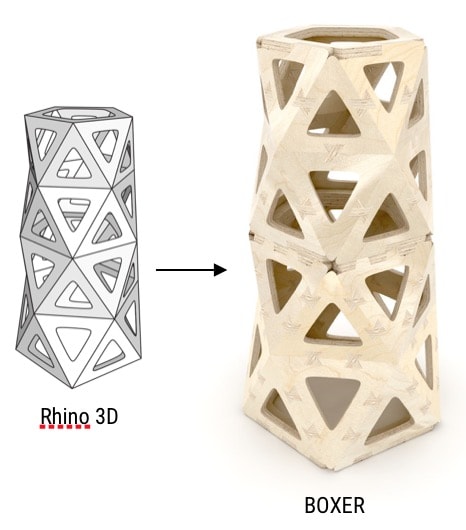

Boxer splits the surfaces of 3D models automatically into plate-shaped panels. This simplifies and accelerates production management considerably.

Boxer takes over the processing management.

Due to the automated process faulty reasoning and miscalculations are a thing of the past.

Boxer realizes effects of design changes automatically.

Changes to 3D models can therefore be implemented very quickly.

The thickness and shape of individual parts can also be changed so quickly.

Common methods for connecting the elements are redundant. Work steps such as welding, gluing and screwing can therefore be omitted.

Integrated nesting of orthogonal and non-orthogonal parts optimizes component layout for production.

  • Boxer calculates the optimal pattern.
  • Material consumption becomes lower and is used more efficient.

Boxer allows assembly of different materials (e.g. wood, glass and stone).

Boxer 3D


  • Design settings: thickness, dominance, teeth
  • Connection types: joint, mitre joint
  • Types of tines: finger tines, dovetail tines
  • Patented tine type: Crossed dovetail tines

Boxer Pro


  • Design settings: thickness, dominance, teeth
  • Connection types: joint, mitre joint
  • Types of tines: finger tines, dovetail tines
  • Patented tine type: Crossed dovetail tines

Note: Plugin only works in the Rhino3D software
